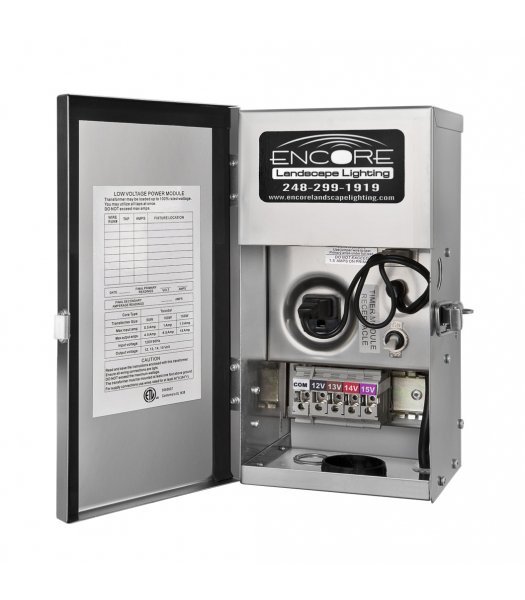

Description

Volts 12, 13, 14, 15
Wattage 600 watts
Max Amps 5.0 amps
Dimensions 16 1/4" L x 6" W x 5 1/2" D
Construction: 304 Stainless Steel
Taps: 12-15 Volt Transformers are 12, 13, 14 & 15
Taps: 12-22 Volt Transformers are 12, 13, 14, 15, 16, 17, 18, 20, & 22
Primary Protection: Automatic thermal reset breaker
Secondary Protection: 25 amp, 300 watt magnetic breaker with reset switch
Torodial Core: Epoxy sealed core which is silent and up to 10% more efficient, runs much cooler than laminated cores
Terminal: Extra large 125 amp terminal blocks, holds (8) 12/2 wire
Internal Wiring: Non-corrosive, tin coated marine grade, dedicated current loop to measure primary amperage.
Timer Receptacle: Standard receptacle for plug and play options
Photo Cell Plug: Dedicated plug for easy installation of photo cell
Child Proof Safety: Lockable latched door to prevent access

Write a review

Volts	12, 13, 14, 15
Wattage	600 watts
Max Amps	5.0 amps
Dimensions	16 1/4" L x 6" W x 5 1/2" D
Construction: 304 Stainless Steel Taps: 12-15 Volt Transformers are 12, 13, 14 & 15 Taps: 12-22 Volt Transformers are 12, 13, 14, 15, 16, 17, 18, 20, & 22 Primary Protection: Automatic thermal reset breaker Secondary Protection: 25 amp, 300 watt magnetic breaker with reset switch Torodial Core: Epoxy sealed core which is silent and up to 10% more efficient, runs much cooler than laminated cores Terminal: Extra large 125 amp terminal blocks, holds (8) 12/2 wire Internal Wiring: Non-corrosive, tin coated marine grade, dedicated current loop to measure primary amperage. Timer Receptacle: Standard receptacle for plug and play options Photo Cell Plug: Dedicated plug for easy installation of photo cell Child Proof Safety: Lockable latched door to prevent access
