$363.00 $296.99
- Availability:
- Pre-Order
- Product Code:
- SUN3-HDL3-SQ-WW-SA
Description
***Leaves Warehouse in 3-5 Days !***

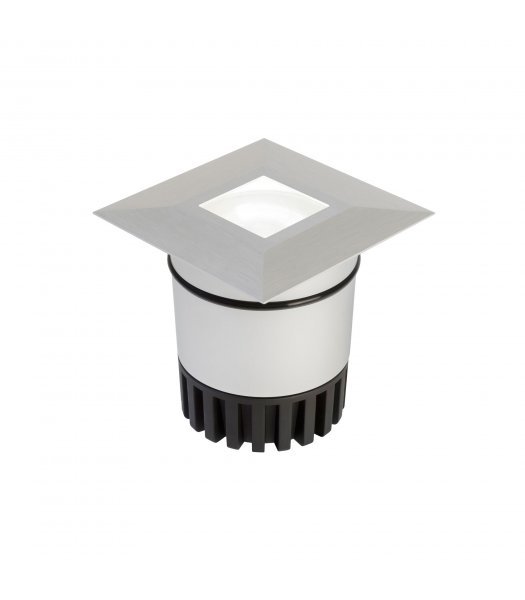

Sun3 3 Inch Square LED Recessed Uplight/Steplight includes a 12 volt 6.5 watt high powered Warm White 2968K color temperature LED, 80CRI, 42 lumens per watt/281 lumens total. Features a 16, 23, 36 or 47 degree precise focus and tempered glass lens with marine-grade aluminum beveled edge trim. Finish in Satin Aluminum. 70 percent lumen maintenance based on 50,000 hours of operation. Sun3 is rated for outdoor, ocean front environments using a wet location electrical box or indoor using a standard octagon electrical box. Can be powered with a 12V TE-60L-12 LED electronic low voltage, or 12VAC T-150-12 or T-300-12 magnetic low voltage power supply. Electronic low voltage power supply dimmable with an electronic low voltage dimmer. Lutron dimmers recommended: Dims to 9 percent with Lutron Diva DVELV-300P, 21 percent with Lutron Skyark SELV-300P, or 31 percent with Lutron Maestro MAELV-600. Magnetic low voltage power supply dimmable with a magnetic low voltage dimmer. Lutron dimmers recommended: Dims to 16 percent with Lutron Diva DVLV-600P, or 39 percent with Lutron Skylark SLV-600P. The trim accepts optical accessories and dichroic color filters when used with the SUN3-LL(H) accessory, sold separately. ETL listed. Wet location listed. 3.2 inch square x 3.43 inch height. Fixture includes a 5 year warranty. SUN3 is constant voltage fixture and it is listed to be used only for floor or wall applications and should not be used in ceiling application which will damage the fixture and void the warranty. For ceiling applications use SUN3C. Required remote transformer, junction box cover, dimmer control, optional wood spring clips for installation in wood, and optical accessories sold separately.
- Finish: Satin Aluminum
- Size: 3.25"W x 3.43"H x 3.25"D
- Dimmer: Dimmable
- Labels: ETL
Wet location
Coastal Rated
- Lamp Source: LED
- Bulb: 1 x LED/6.5W/12V LED MODULE INCLUDED!
Total Wattage: 6.5 watts
- Lamp Color: 2968K
- Color Rendering: 80 CRI
- Luminous Flux: 281 lumens
- Lumens/Watt: 43.23
- Beam Angle: 36°
- Lamp Life: 50000 hours
Sun3 3 Inch Square LED Recessed Uplight/Steplight includes a 12 volt 6.5 watt high powered Warm White 2968K color temperature LED, 80CRI, 42 lumens per watt/281 lumens total. Features a 16, 23, 36 or 47 degree precise focus and tempered glass lens with marine-grade aluminum beveled edge trim. Finish in Satin Aluminum. 70 percent lumen maintenance based on 50,000 hours of operation. Sun3 is rated for outdoor, ocean front environments using a wet location electrical box or indoor using a standard octagon electrical box. Can be powered with a 12V TE-60L-12 LED electronic low voltage, or 12VAC T-150-12 or T-300-12 magnetic low voltage power supply. Electronic low voltage power supply dimmable with an electronic low voltage dimmer. Lutron dimmers recommended: Dims to 9 percent with Lutron Diva DVELV-300P, 21 percent with Lutron Skyark SELV-300P, or 31 percent with Lutron Maestro MAELV-600. Magnetic low voltage power supply dimmable with a magnetic low voltage dimmer. Lutron dimmers recommended: Dims to 16 percent with Lutron Diva DVLV-600P, or 39 percent with Lutron Skylark SLV-600P. The trim accepts optical accessories and dichroic color filters when used with the SUN3-LL(H) accessory, sold separately. ETL listed. Wet location listed. 3.2 inch square x 3.43 inch height. Fixture includes a 5 year warranty. SUN3 is constant voltage fixture and it is listed to be used only for floor or wall applications and should not be used in ceiling application which will damage the fixture and void the warranty. For ceiling applications use SUN3C. Required remote transformer, junction box cover, dimmer control, optional wood spring clips for installation in wood, and optical accessories sold separately.
- Finish: Satin Aluminum
- Size: 3.25"W x 3.43"H x 3.25"D
- Dimmer: Dimmable
- Labels: ETL Wet location Coastal Rated
- Lamp Source: LED
- Bulb: 1 x LED/6.5W/12V LED MODULE INCLUDED!
Total Wattage: 6.5 watts
- Lamp Color: 2968K
- Color Rendering: 80 CRI
- Luminous Flux: 281 lumens
- Lumens/Watt: 43.23
- Beam Angle: 36°
- Lamp Life: 50000 hours
