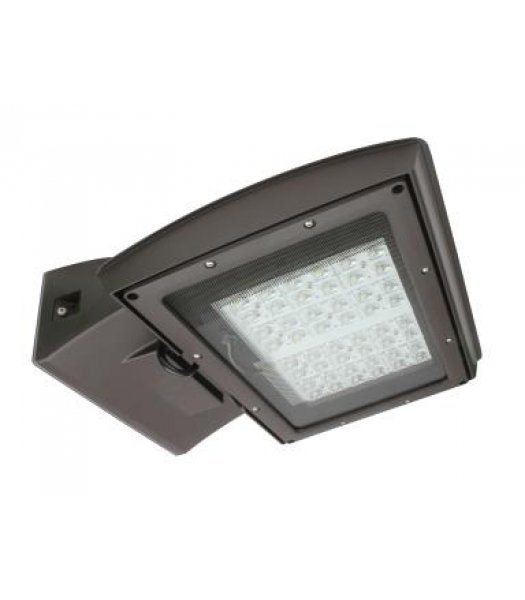

Maxlite MP-SM100UT4-50B 95W LED Wall Light Type 4 Distribution 120-277V 5000K 11730 Lumens

Leaves Warehouse in 3-5 Days!

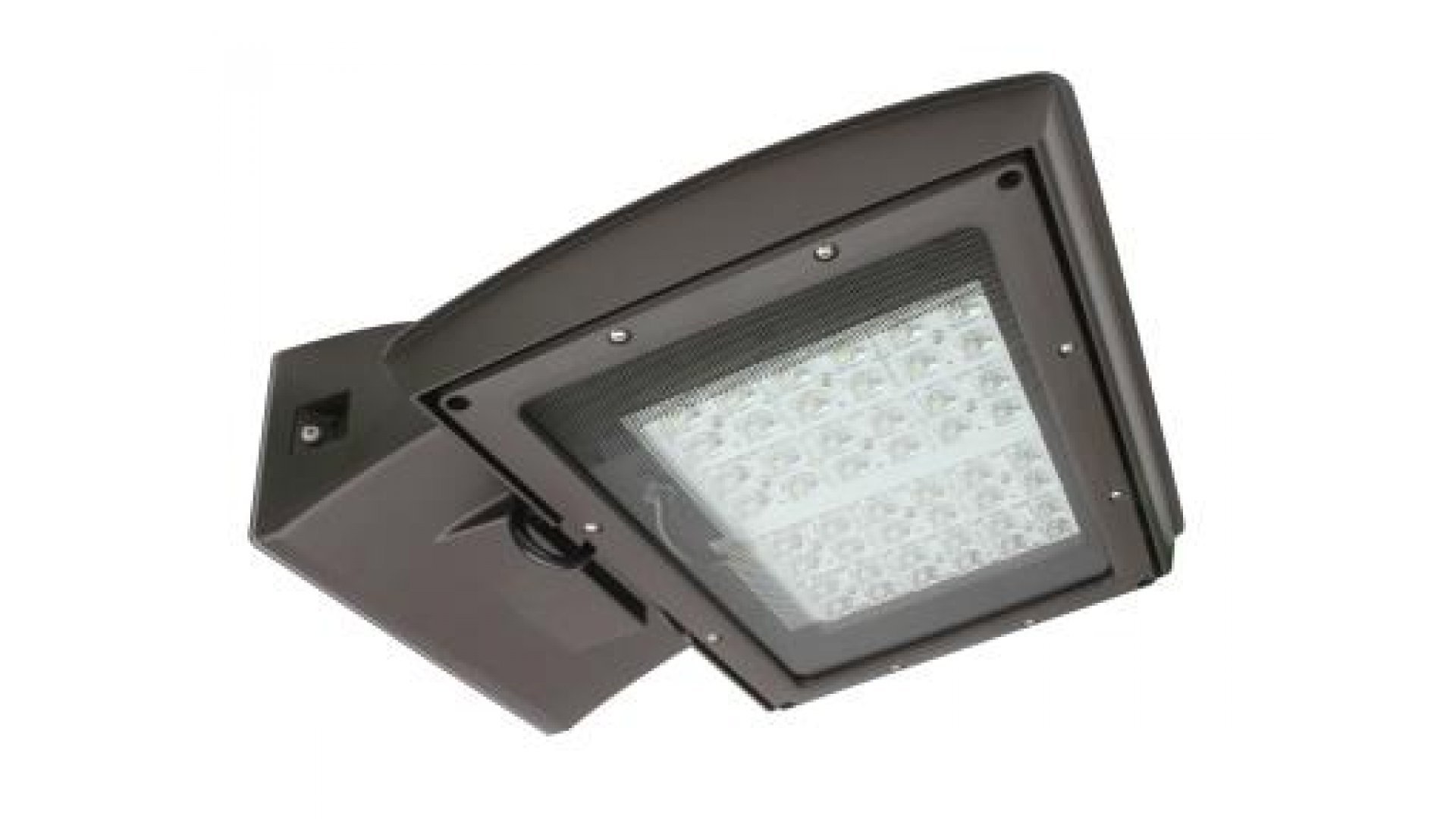

Thoughtfully designed for downlighting, the MPulse WALL MOUNT features an adjustable head that enables its use as an open face or cutoff fixture. It takes just one person to install and service the MPulse Wall Mount luminaire. The back plate mounts to the surface and allows for the wall mount to hang for easy wiring. Once the power supply is connected, the fixture is secured into place with screws. A hinged back cover provides access to the driver for quick and easy replacement in the field.

• 120-277V, • 95W 11,730 Lumens • 5000K  • 400MH Equivalent Type 4 Light Distribution The type IV distribution produces a semicircular light meant for mounting on the sides of buildings and walls. It’s best for illuminating the perimeter of parking areas and businesses. The intensity of the Type IV lighting has the same intensity at angles from 90 degrees to 270 degrees.

FINISHES: • Satin bronze finish standard • Also available in silver finish

PERFORMANCE: • Trade Agreements Act (TAA) compliant • Available in lumen packages of 3000, 6000, and 11500 lumen • LEDs have a calculated lumen maintenance value of > 93% (L93) at 100,000 hours calculated at 25°C • 120-277V dimming standard. 347-480V options available

OPTICS: • Available in Type III and Type IV optics • Visual comfort available in 28W and 55W

OPTIONS: • 120-277V External Button Photocell • High/Low/Off PIR fixture integrated photo/motion sensor compatible with FSIR-100 remote control • Battery backup available for 28W and 55W.  Shipping may be delayed for fixtures with added Controls or Battery Backup Options.

DESIGN: • 0-45 degree field adjustable head in steps (15°, 30°, 45°)

CONSTRUCTION: • Die Cast Aluminum housing • Tempered Glass

MOUNTING: • Designed to mount to standard 3.5” or 4” J-box • Uniquely designed for ease of installation by one person

WARRANTY:  10-year standard warranty with labor allowance*
